Nagaoka MP-700 H Cartridge

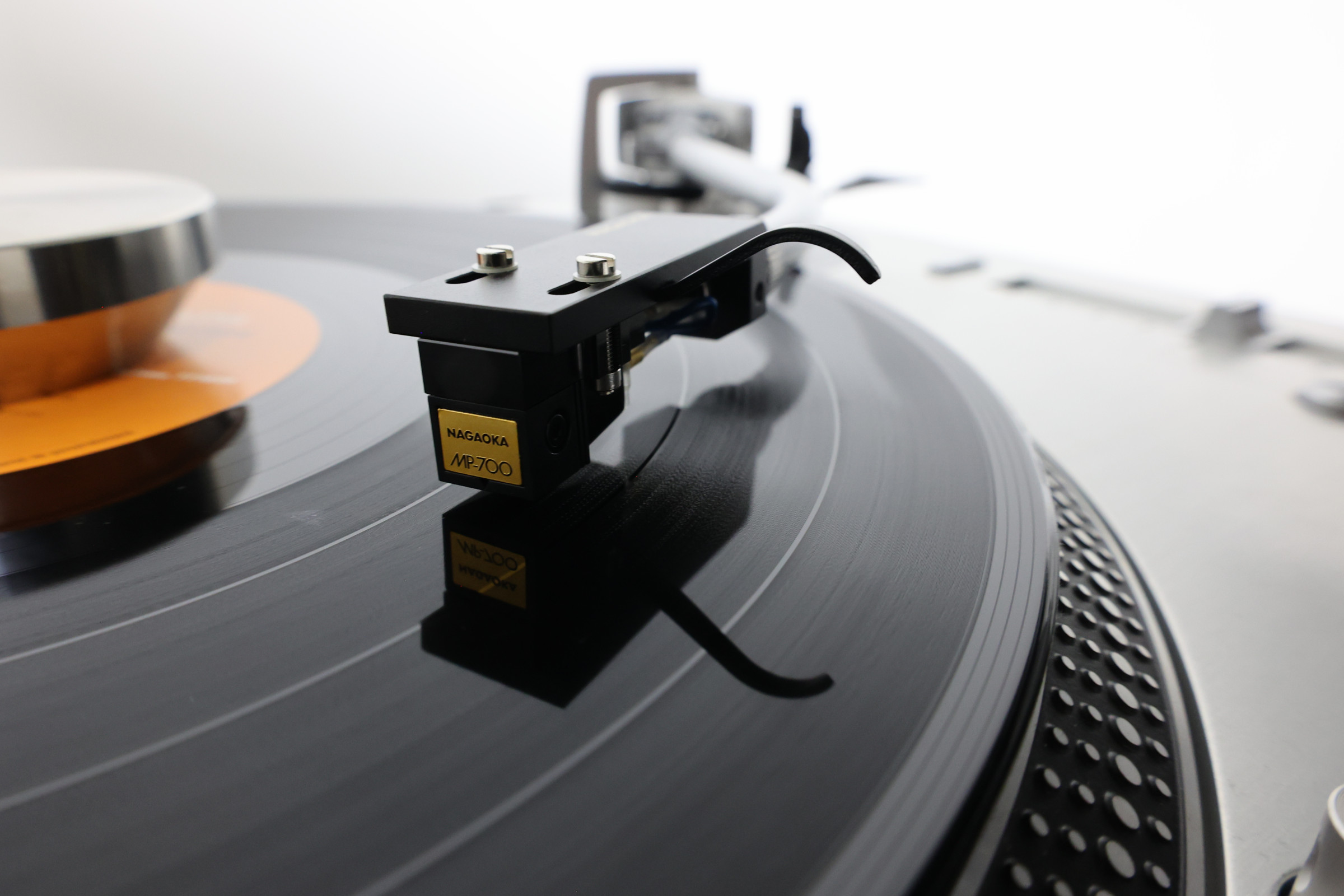

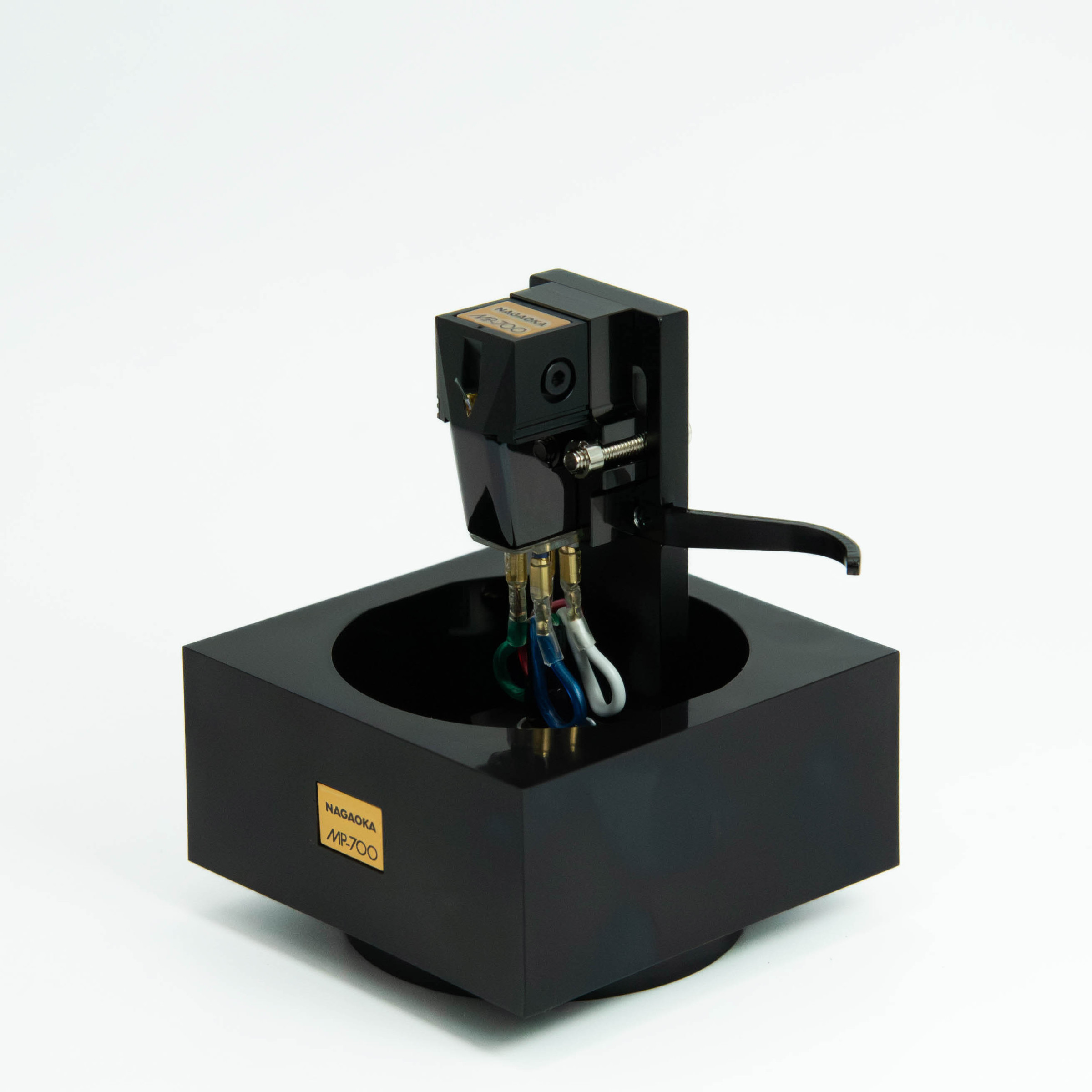

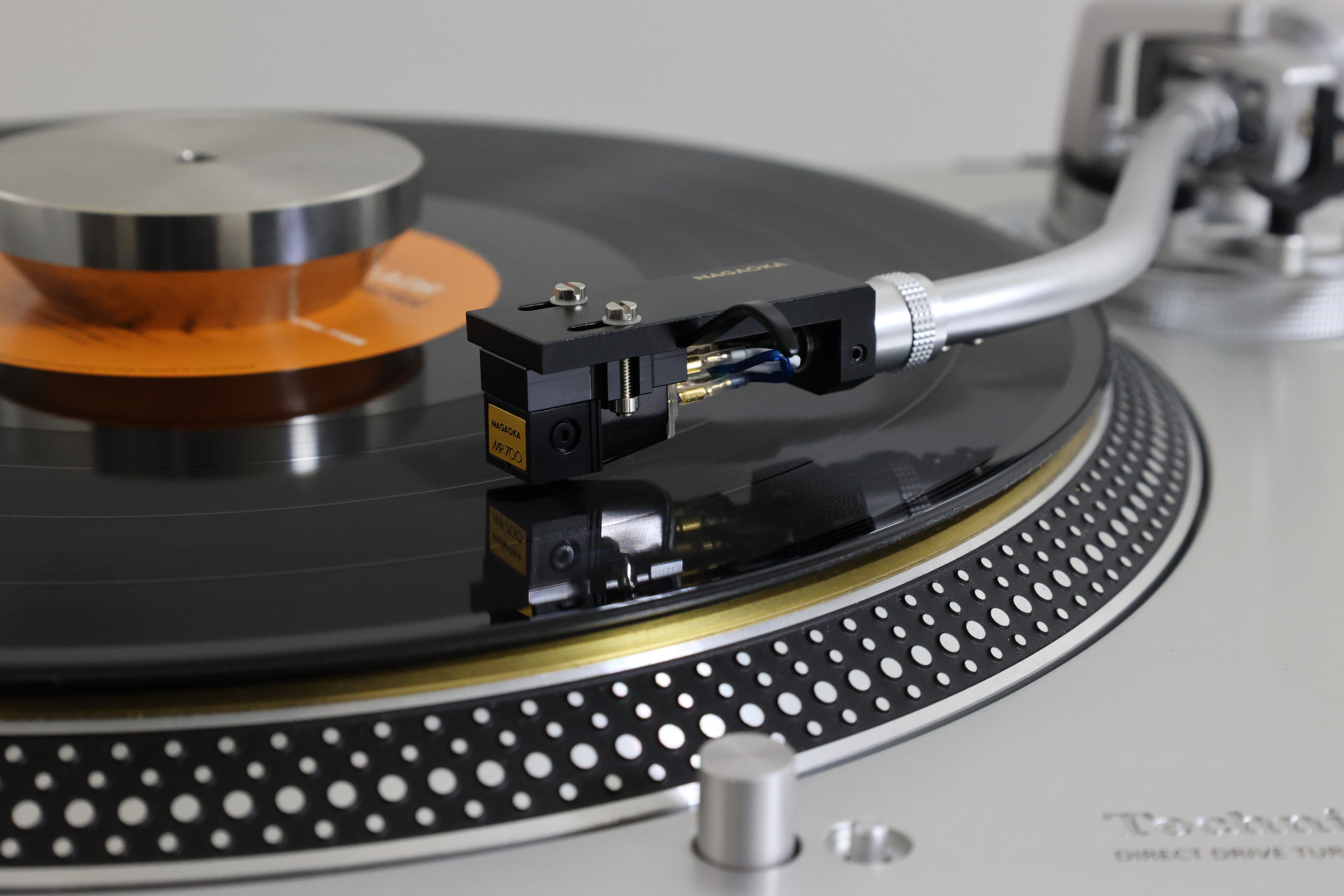

Nagaoka MP-700 H – High-end cartridge including headshell

The Nagaoka MP-700 is a high-quality MM (Moving Permalloy) cartridge for discerning vinyl enthusiasts. Designed for exceptionally precise sound reproduction, it offers a perfect combination of innovative technology, exquisite craftsmanship, and audiophile standards – ideal for high-quality hi-fi systems and discerning vinyl listeners .

Thanks to advanced Moving Permalloy technology, the MP-700 uses a particularly lightweight permalloy element on the stylus cantilever. This design significantly reduces moving mass and enables significantly freer, more sensitive tracking of the record groove – for clearer, more dynamic, and detailed sound reproduction .

Inside, a precisely crafted boron stylus is combined with a micro-ridged bare diamond (0.12 x 3.0 mil). This combination ensures maximum tracking accuracy, improved channel separation, and particularly high-resolution reproduction – even with complex musical passages.

As the flagship of the MP series, the MP-700 cartridge is equipped with the softest damper in the series. Combined with a specially developed pivot point system, the stylus remains stable and controlled at all times – even under the most demanding conditions. The result: precise bass, natural midrange, and brilliant highs.

The robust pickup housing made of ultra-duraluminum has a triple surface finish (nickel, black tin, insulating protective layer), which reduces electrostatic charge, increases service life and ensures an elegant appearance.

Like all Nagaoka Japan cartridges, the MP-700 is handcrafted with great care by experienced technicians – for uncompromising quality, longevity and a unique listening experience.

Technical specifications – Nagaoka MP-700 cartridge

Output voltage (1 kHz, 5 cm/sec): 4 mV

Frequency response: 20 Hz – 27,000 Hz

Channel separation at 1 kHz: 30 dB – for excellent stereo imaging

Channel balance at 1 kHz: = 1.0 dB – for precise sound reproduction

Recommended termination impedance: 47 kO – compatible with common phono preamplifiers

Recommended termination capacitance: 100 pF

Vertical force (recommended tracking force): 1.4 g

Needle cantilever material: High-quality boron – light and stiff for precise tracking

Needle type: Micro-Ridge – bare diamond for highest resolution and durability

Pickup weight: 8.0 g

Total weight including headshell: 26.3 g

Replacement needle: JN-P700 – easily replaceable, perfect fit for the MP-700
