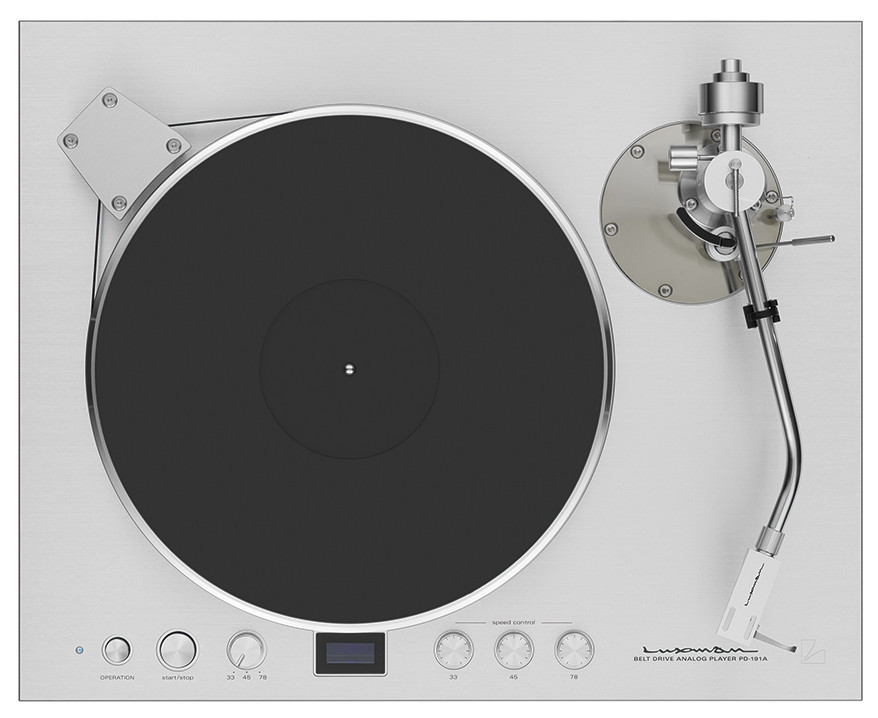

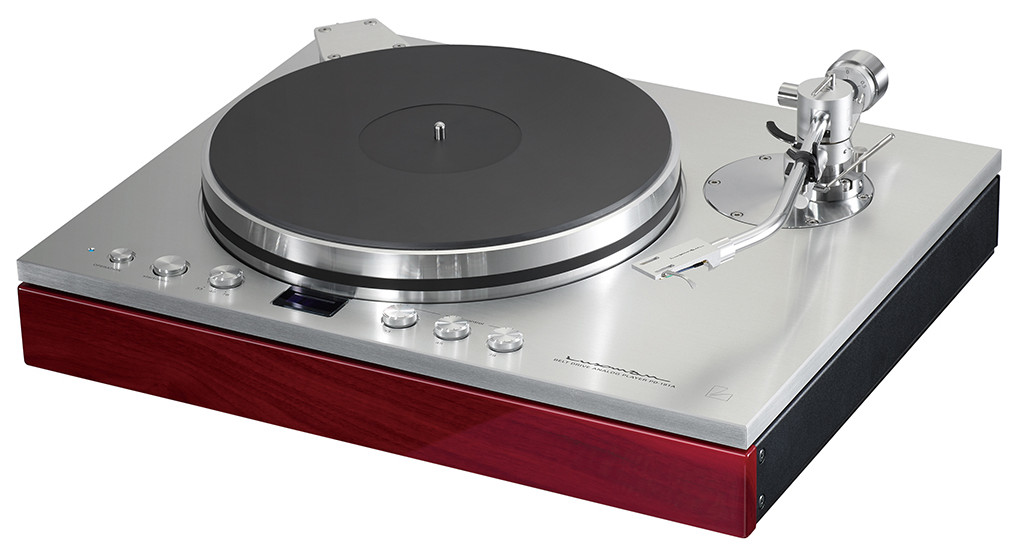

Luxman PD-191A belt-driven turntable incl. tonearm

Luxman PD-191A Analog Belt-Drive Turntable

Analog perfection. Timeless enjoyment.

With the PD-191A, Luxman opens a new chapter in the high-end vinyl segment. A logical evolution of the legendary PD-171 series, this turntable combines uncompromising engineering with the emotional magic of analog music reproduction. For listeners who want to not just hear music, but experience it.

The PD-191A unfolds the full warmth, depth, and dynamics of your records – with an ease that makes time stand still. Every note, every nuance is reproduced with impressive composure, precision, and musicality.

Newly developed tonearm LTA-710 – maximum sensitivity

At the heart of the system is the 10-inch LTA-710 tonearm, developed in cooperation with the renowned tonearm specialist SAEC. The statically balanced design with knife-edge bearing offers exceptionally high initial sensitivity and effectively minimizes tracking error.

The result: even the finest information from the groove is sampled accurately and stably – musically, precisely and free from mechanical artifacts.

Precise belt drive with high-end motor control

A high-torque, brushless DC motor forms the basis for extremely quiet operation. Supported by a generously sized, fully regulated power supply and Luxman's sine wave PWM/PID control, the speed remains constant – regardless of load or temperature.

A highly stable reference clock with MEMS oscillator ensures precise speed and impressively confident playback.

Solid turntable platter – stability through moment of inertia

The 5.2 kg platter, milled from a solid block of aluminum, acts like a flywheel with enormous inertia. Combined with a high-precision bearing assembly made of stainless steel, PEEK axial bearings, and an oil-lubricated brass radial bearing, this results in exceptionally smooth and consistent operation – the perfect foundation for the highest sonic fidelity.

Design that makes technology visible

The PD-191A is not just an audiophile tool, but also a statement. The solid wood front with a rosewood finish, combined with a finely crafted aluminum surface, embodies classic Luxman design in a modern form.

Thanks to the low-mounted engine section, the chassis has a particularly low center of gravity – elegant, stable and functionally well-thought-out down to the last detail.

Thoughtful features for discerning vinyl lovers

• Three speeds: 33, 45 and 78 RPM
• LED strobe light with optimized readability
• Highly effective vibration damping and adjustable insulator feet
• High-quality aluminum headshell with DUCC conductors
• Interchangeable tonearm bases for 9', 10' and optionally 12' tonearms
• Gold-plated power connector for optimal power supply

Enter into a long-term musical relationship

The Luxman PD-191A is not a turntable for quick comparisons – it is an instrument for long-term musical relationships. Designed for connoisseurs who appreciate the highest precision yet seek emotional depth.

A turntable that doesn't interpret analog music, but respectfully reveals it.

Technical data

Drive / Turntable

• Drive system: Belt drive
• Motor: Brushless DC motor with PID control
• Turntable: Aluminum, diamond-ground surface
• Plate weight: 5.2 kg
• Speeds: 33, 45, 78 rpm (switchable)
• Fine adjustment of the speed: ±6%, each speed separately
• Speed fluctuations: = 0.04% (WRMS)

tonearm

• Type: Statically balanced, S-shaped universal tonearm
• Bearing: Concealed vertical knife edge bearings
• Effective length: 256 mm
• Overhang: 16 mm
• Toe error angle: +1.07° to 1.52°
• Recommended cartridge weight: 4–11 g
  (incl. headshell: 17–24 g)
• Height adjustment: 22 mm
• Anti-skating: Adjustable from 0 to 4 g

Electrical data

• Power supply: 230 V / 50 Hz or 115 V / 60 Hz
• Power consumption: 5 W

Dimensions & Weight

• Dimensions (W × H × D):
  491 × 126 mm (to top edge of turntable) × 399 mm
• Weight:
  – 24.8 kg (main unit)
  – 26.4 kg (including dust cover)

Scope of delivery

• turntable
• Headshell with DUCC internal wiring
• rubber mat
• drive belt
• Turntable handles (2 pieces)
• EP adapter
• counterweight
• Anti-skating weight
• tonearm
• Hex keys (2 types)
• Screwdriver for speed adjustment
• Hex key for disassembling the tonearm base
• Phono cable (DIN to RCA, pre-assembled)
• power cable
