T+A PDT 3100 HV CD/SACD Harddrive
€17,000.00
per Piece incl. VAT / incl. Shipping
- After placing your order, your Account Manager will contact you to schedule delivery and installation.
- We deliver your new devices in Germany and Austria personally to the place of installation - no courier, no forwarding agency.
- The Auditorium Team installs your new devices professionally and connects them to existing components.
The reference CD / SACD drive
The PDT 3100 HV is a puristic CD / SACD drive without additional built-in digital sources or converters. It was developed solely for the uncompromising scanning of SACDs and CDs and equipped with the decoder / drive mechanism that we developed completely new, which reads and decodes CD and SACD error-free and in the highest quality. This mechanism is integrated into an uncompromisingly manufactured, heavy sub-chassis that completely shields and decouples it. The mechanical effort is enormous, all housing parts are made of solid aluminum.
technology

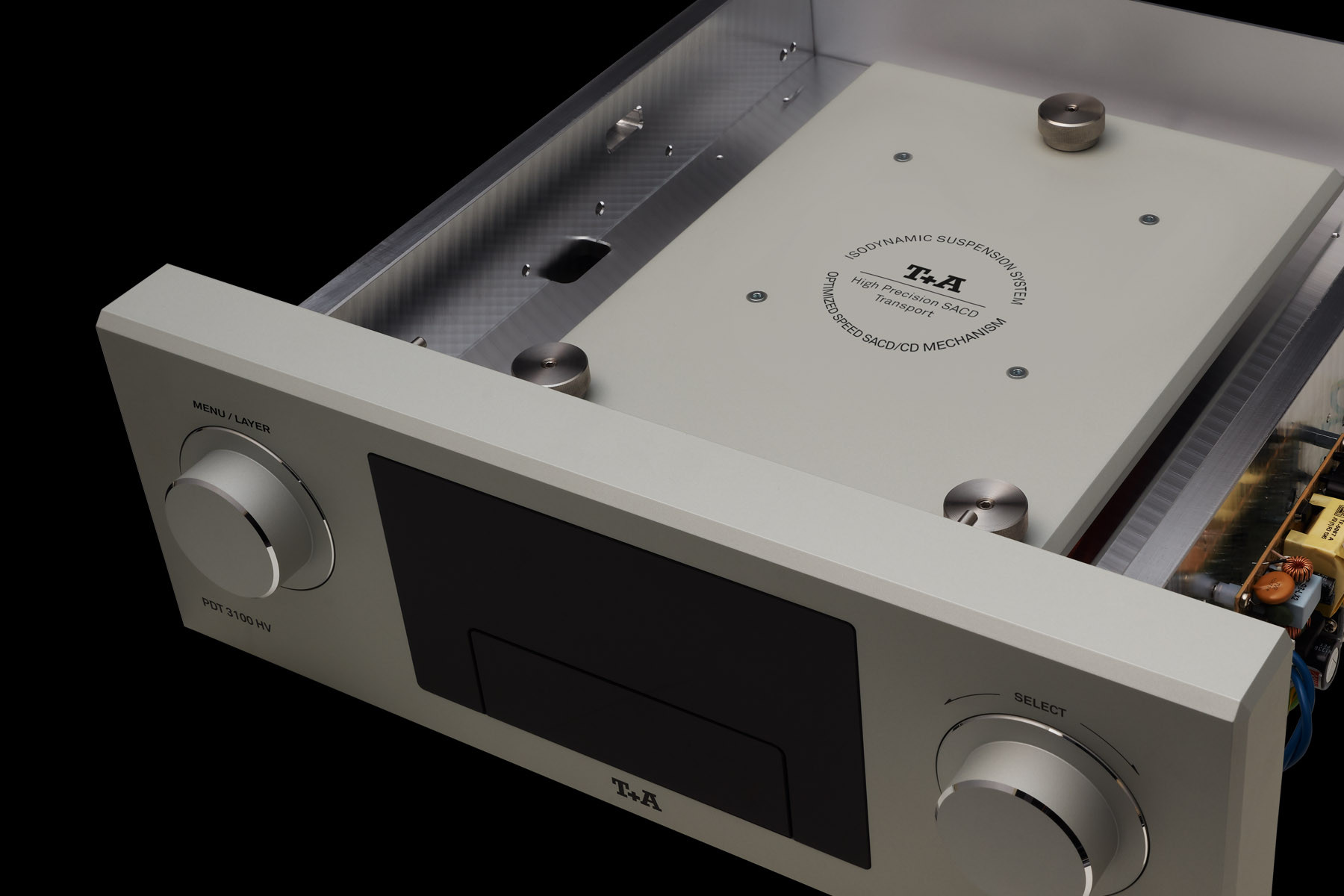

The heart of the PDT 3100 HV is the modern decoder / drive mechanism that we have specially developed for audio applications. It has the latest processors, lasers, high-performance motors and components and thus offers the best conditions for perfect and error-free scanning behavior. This unit is completely shielded in a solid aluminum housing milled from solid to prevent any form of interaction between the moving mechanics of the mechanism and the rest of the player. This entire drive block only moves on two linear bearings with close tolerances, which are suspended from a solid carrier plate. This is only fixed at three points on the middle plate of the housing. The entire drive unit is thus completely decoupled from the heavy outer housing.
drive
principle
Precision linear drive
Double GaAlAs laser system
CD: 785 nm
SACD: 650 nm
Formats
CD, CD-R, CD / RW, SACD Stereo, SACD / CD Text
Frequency response and dynamics
CD: 2 Hz - 20 kHz / 100 dB
SACD: 2 Hz - 44 kHz / 110 dB

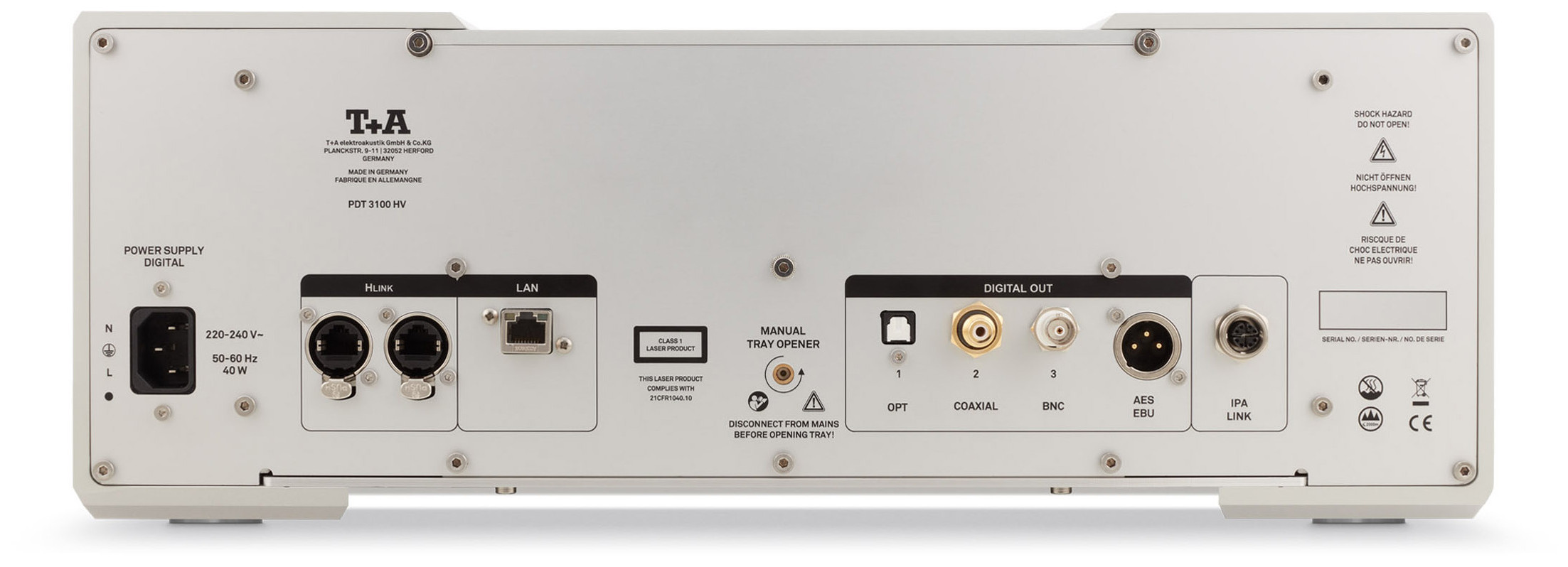

connections
AES digital outputs
1 x AES-EBU 32 ... 192 kHz / 16-24 bit
Digital outputs S / P-DIF:
3 x S / P-DIF:
1 x standard coax 32 ... 192 kHz / 16-24 bit,
1 x high quality BNC 32 ... 192 kHz / 16-24 bit,
1 x optical TOS-Link 32 ... 192 kHz / 16-24 bit.
1 x IPA Link (LVDS), LAN, 2 x H-Link
Connection / accessories / dimensions
Mains connection
110-120 V or 220-240 V, 50-60 Hz, 40 W.
Power consumption in operation
40 watts
Standby mode
<0.5 W
equipment
1x power cord
Remote control F 3100
CD stabilizer
IPA bus cable
Dimensions (H x W x D)
17 x 46 x 46 cm
Weight
29 kg
Executions
Case lacquer silver 47 or titanium 64
Technical changes reserved!
Mains voltage
If your mains voltage is not 230 volts, please specify the desired voltage for the device in the comment field of your order. We will have the device configured accordingly by the manufacturer.
| Color: | black, silver |
|---|---|
| Condition: | New goods |
| Device depth mm: | 460 |
| Device height mm: | 170 |
| Device width mm: | 460 |
| Features / special features: | SACD |
| Material: | aluminum |
| Outputs: | Digital BNC, Digital RCA, Digital Toslink, Digital XLR |
| Playable media: | CD, CDRW, CR, SACD |
| Product type: | CD player |
| Series: | HV 3100 |
