Ortofon Concorde Music MM Pickup
€398.00
per Piece incl. VAT / incl. Shipping
Available, delivery time: 1-3 days
GermanyWe ship your goods quickly and safely with DHL. After shipping you will receive a tracking number for package tracking.

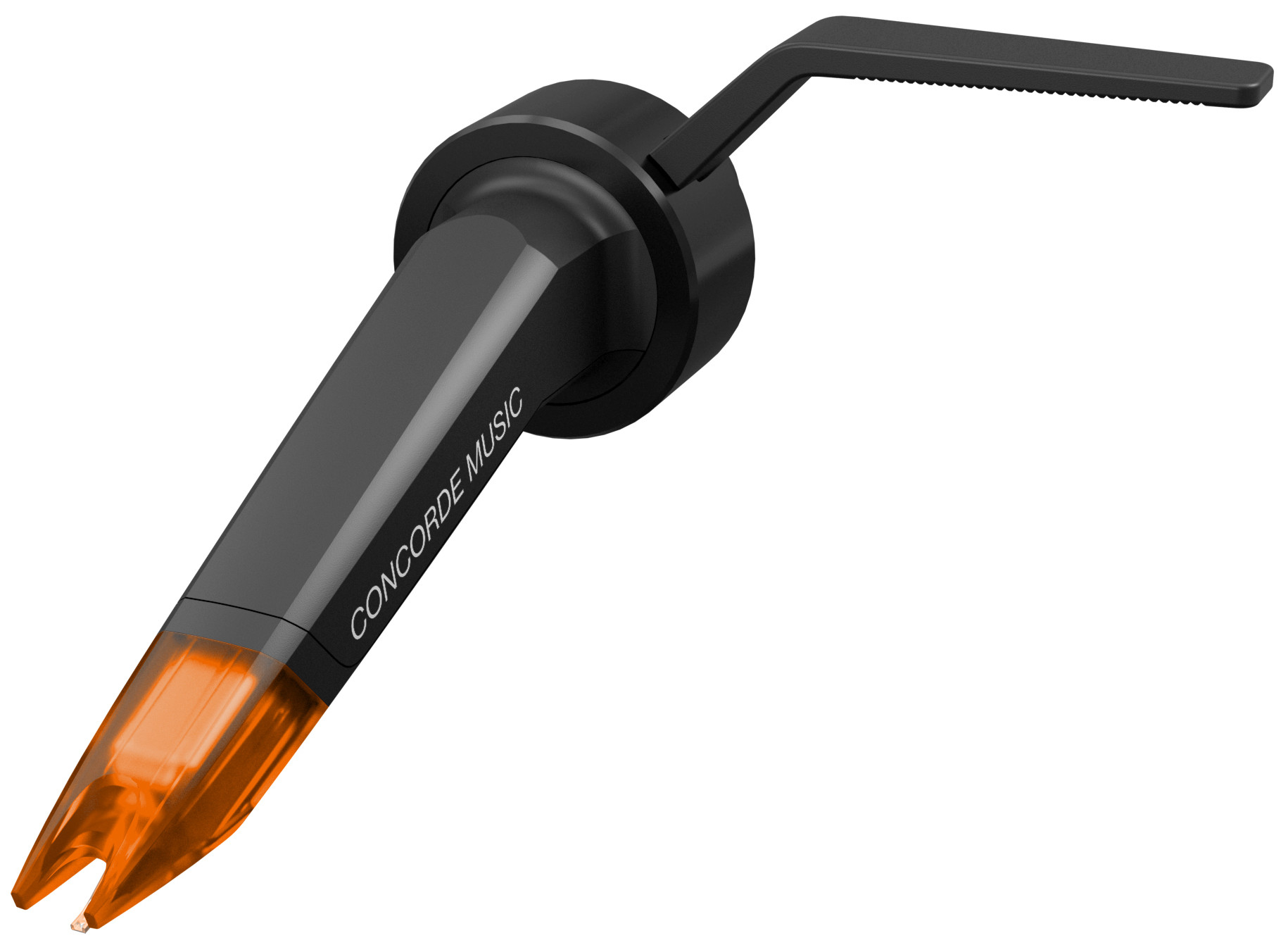

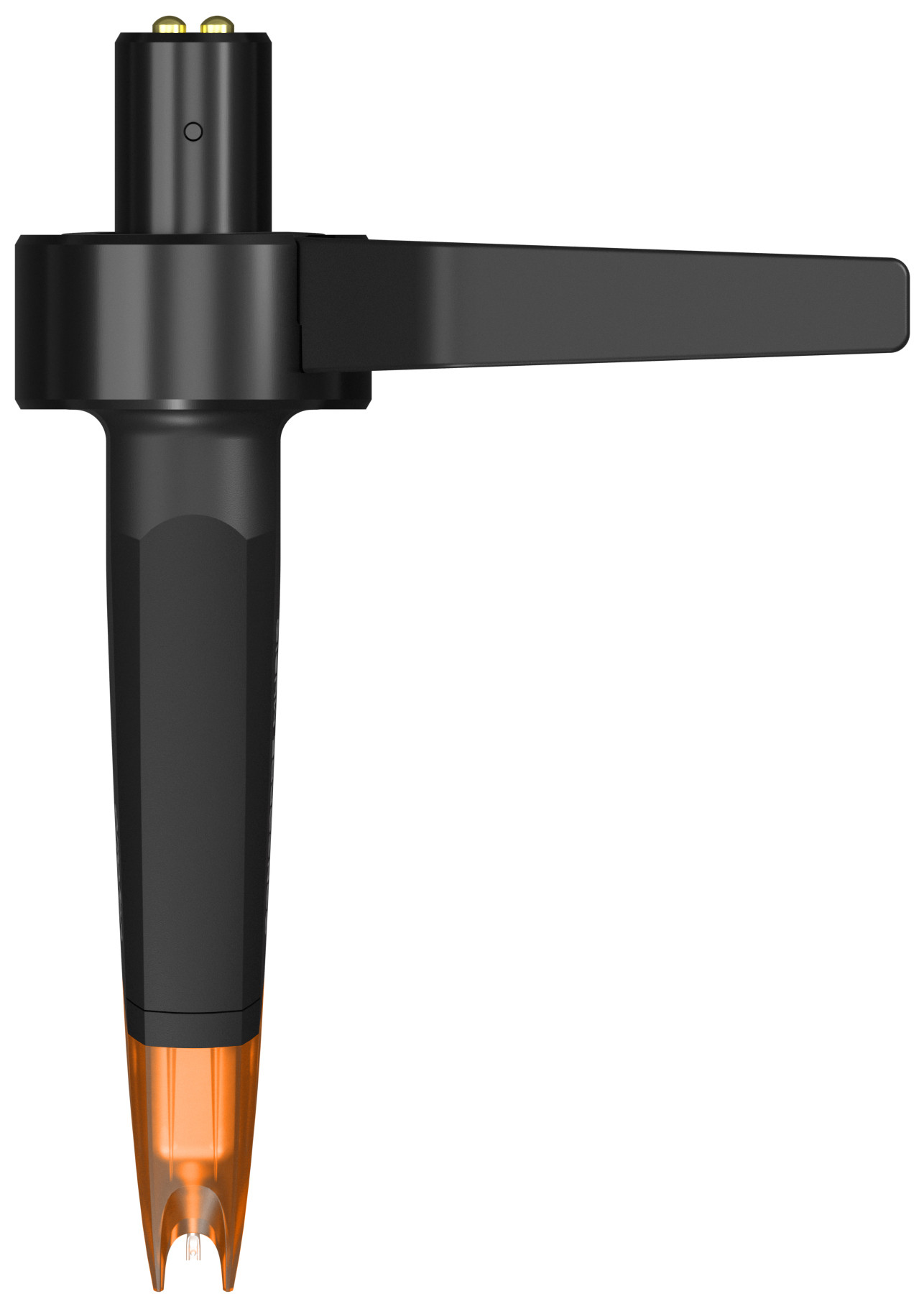

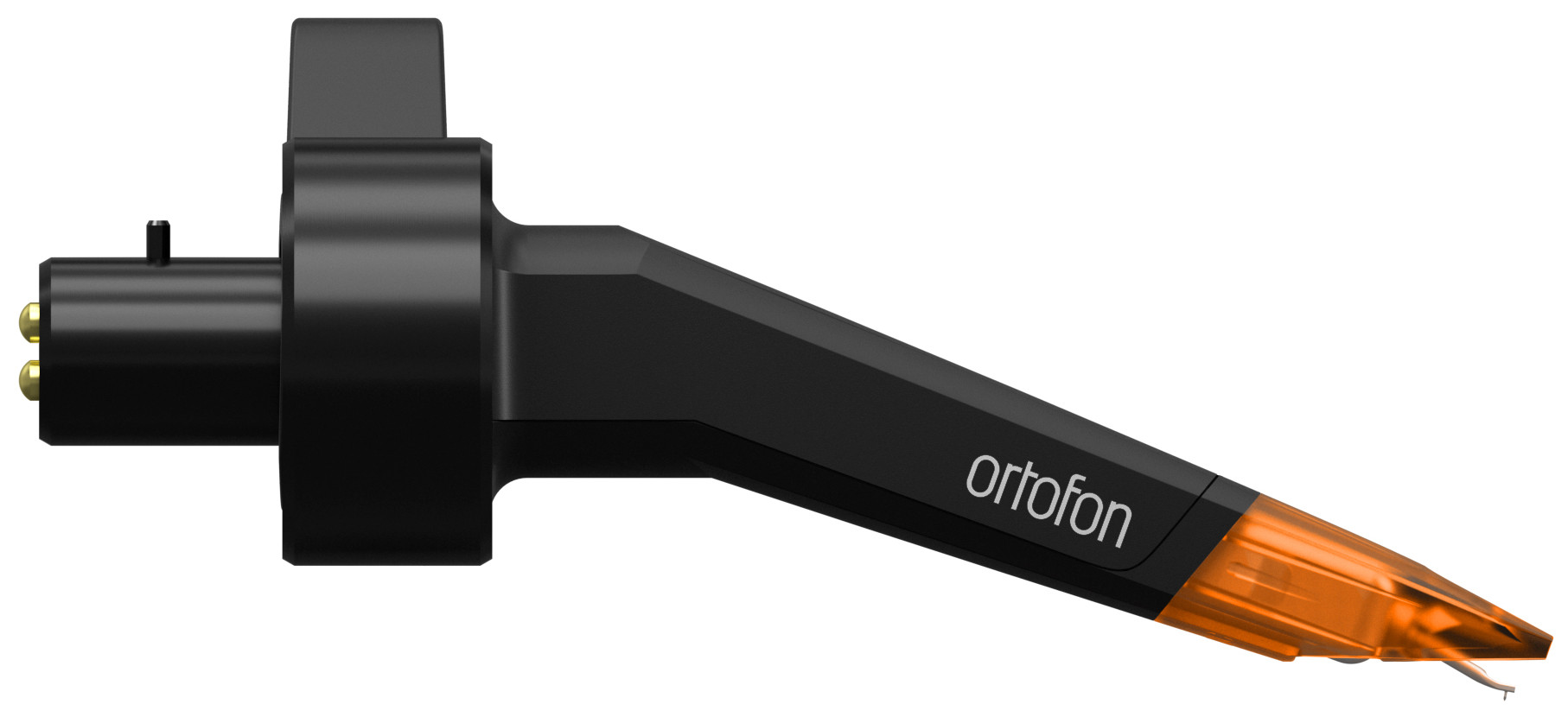

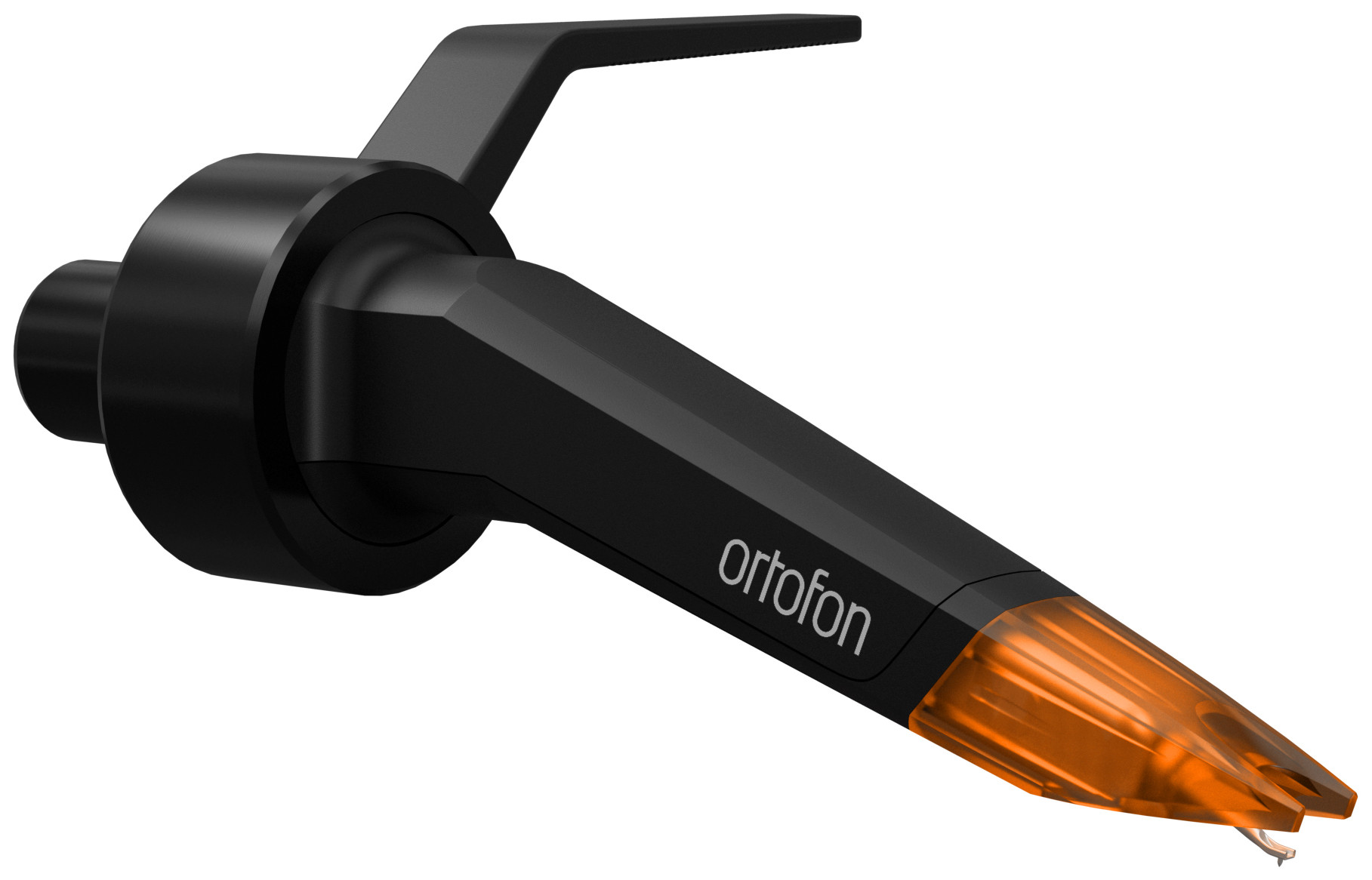

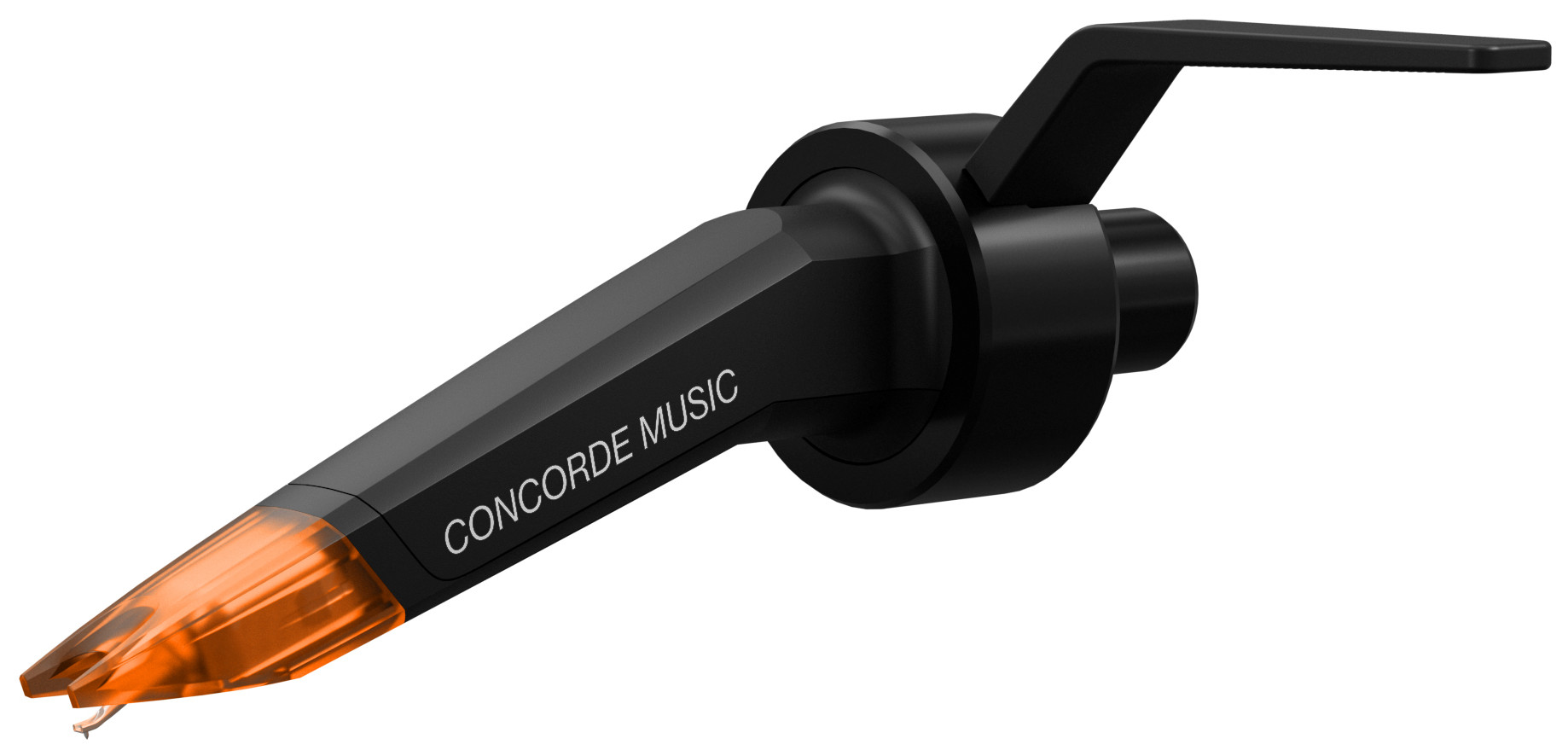

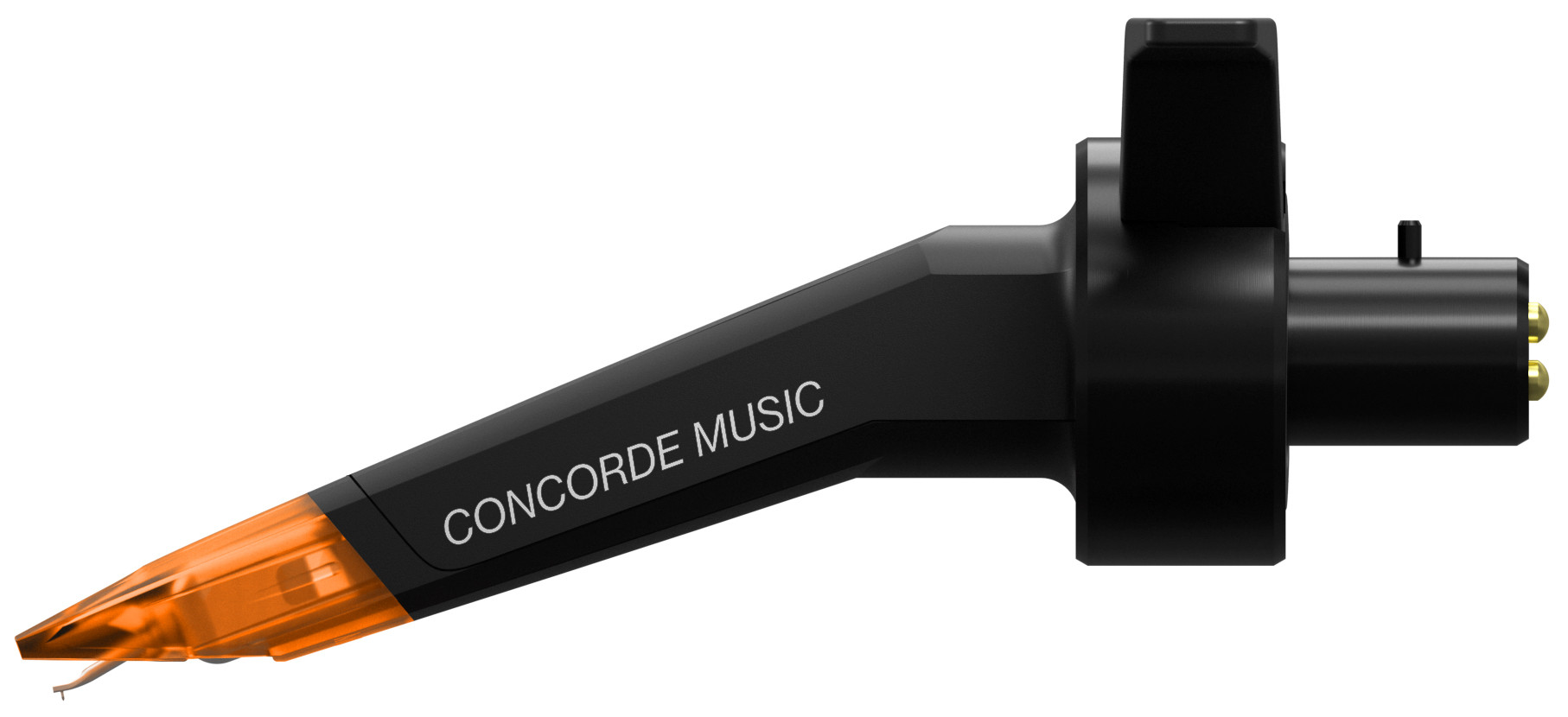

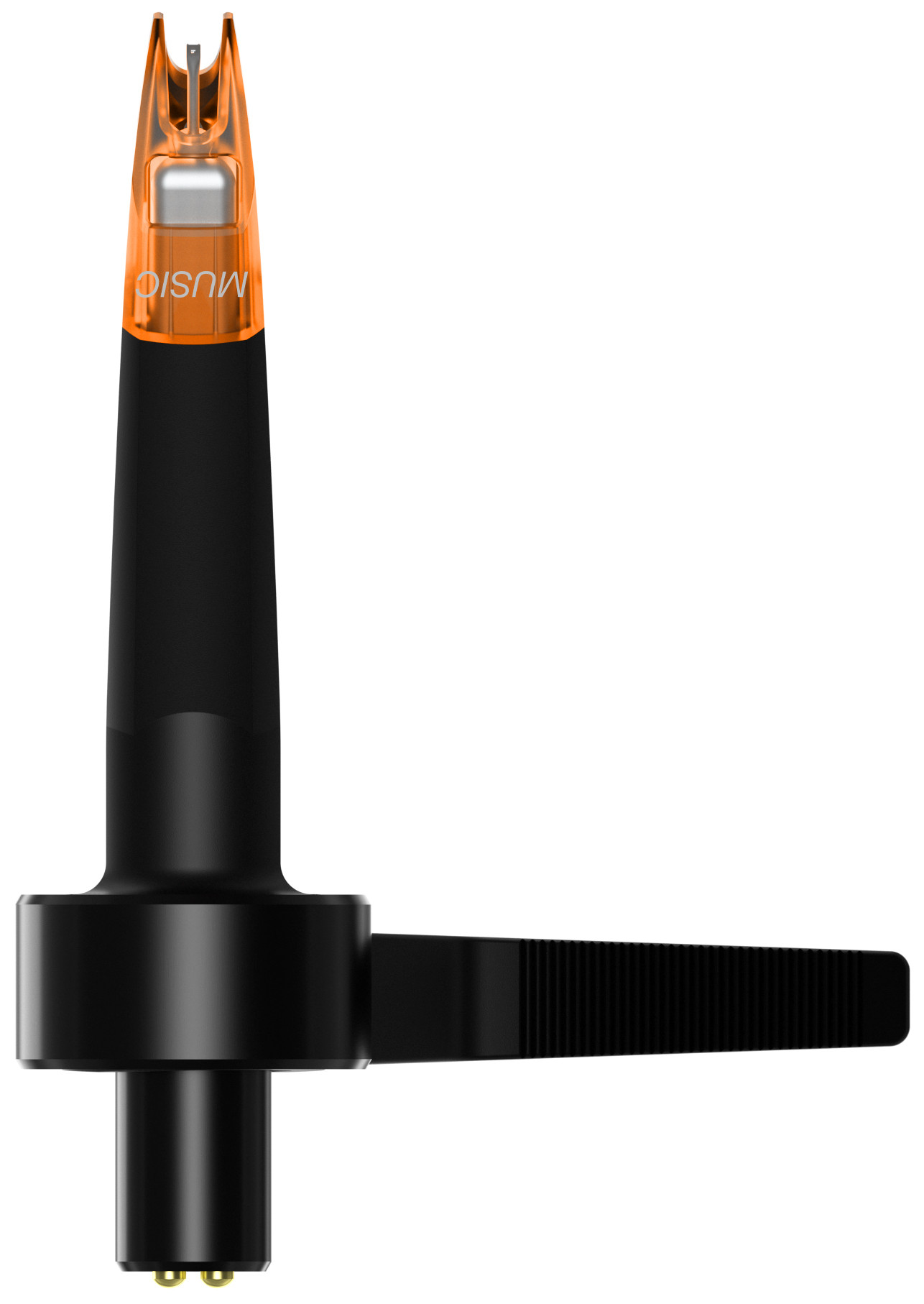

CONCORDE MUSIC BRONZE
Featuring a Nude Fine Line needle on an aluminum cantilever, the Concorde Music Bronze offers an upgrade from the Concorde Music Blue.
The unique shape of the Nude Fine Line diamond allows for more precise tracking of the groove, bringing out every detail of your favorite records. Experience your music with unparalleled precision and clarity that will captivate you.
CONCORDE MUSIC SERIES
The Concorde Music series is the result of passionate engineering that captures the essence of music and transforms it into a captivating listening experience. Thanks to its innovative design, each Concorde Music cartridge can be installed effortlessly and without tools, for immediate listening pleasure without stress.
With its iconic design, Concorde Music continues the legacy of the legendary Concorde cartridges and sets a new standard in the world of audio technology. Its unique design, which once won the Danish Industrial Design Award, is a symbol of perfection and innovation.
Compatibility with S-shaped tonearms makes installation a breeze, while the ability to seamlessly upgrade by simply changing the stylus makes the Concorde Music a future-proof investment. Immerse yourself in the world of the Concorde Music Blue and experience music like never before.
Upgrade Possible
Enjoy seamless upgrades within the series, from Concorde Music Blue to Concorde Music Black LVB 250, simply by changing the needle.
TECHNICAL DATA
- Channel balance at 1 kHz: 1 dB
- Output voltage at 1 kHz, 5 cm/s: 6 mV
- Channel separation at 1 kHz: 26 dB
- Channel separation at 15 kHz: 17 dB
- Frequency response: 20 Hz - 20 kHz
- Frequency response tolerance: +2 / 0 dB
- Scanning capability at 315 Hz: 80 µm
- Dynamic compliance (lateral): 15 µm/mN
- Needle Type: Nude Fine Line Diamond on Aluminium Cantilever
- Needle radius: r/R 8/40 µm
- Recommended tracking force: 1.8 g
- Support angle: 20°
- Internal impedance, DC resistance: 1.27 kΩ
- Pickup color: Black/Bronze
- Pickup weight: 18 g
- Recommended load resistance: 47 kO
- Internal inductance: 815 mH
- Recommended load capacitance: 150-300 pF
| Abschlussimpedanz in Ohm: | 46000 |
|---|---|
| Cartridge type: | MM |
| Condition: | New goods |
| Configuration: | Music Bronze |
| Output voltage in mV: | 6 |
| Tracking force in g: | 1.8 |
